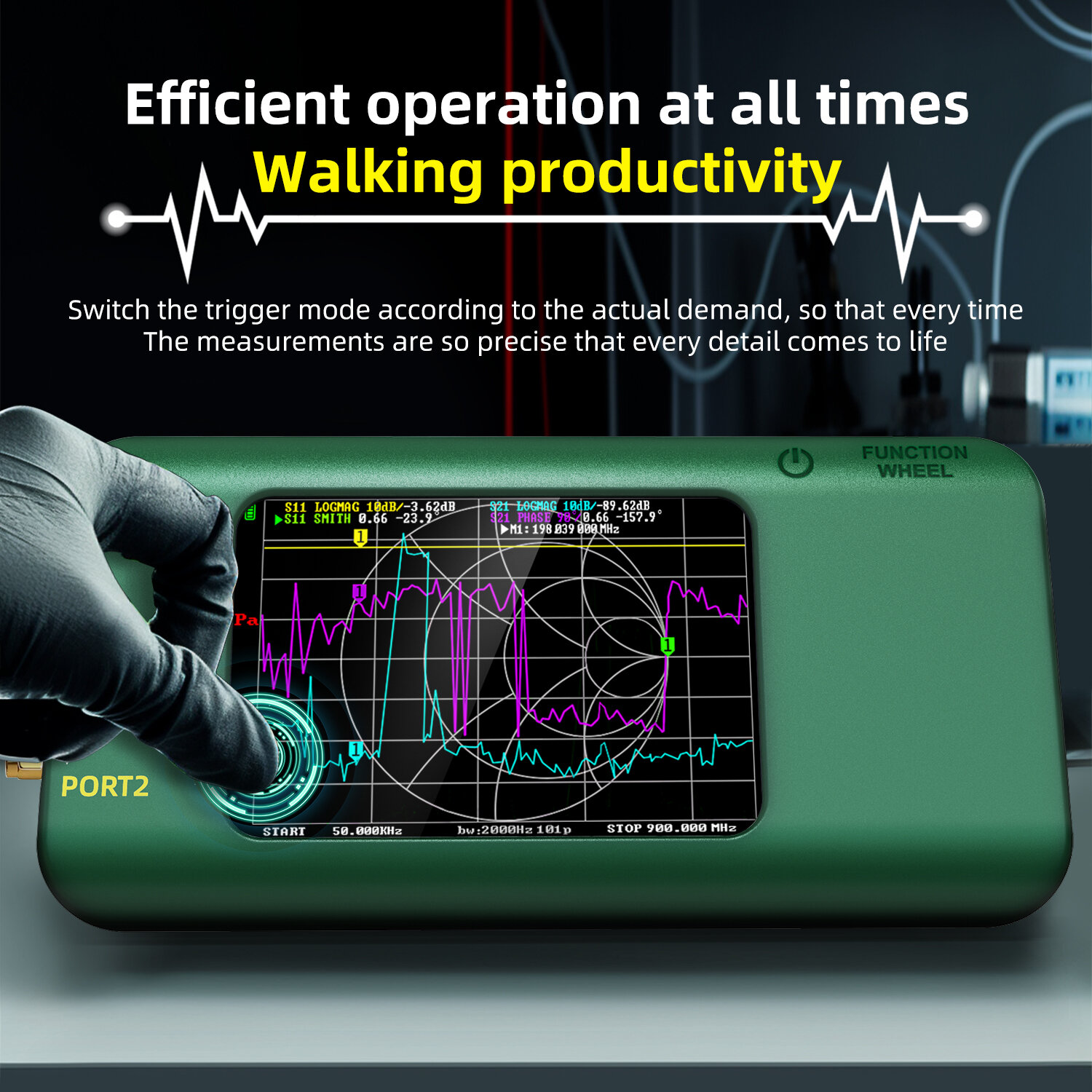

This vector network analyzer features a 3.98-inch TFT full-view angle touchscreen with 320*480 resolution, providing clear and vibrant visuals and responsive touchcontrols. Offers 10 kHz to 1.5 GHz frequency measurement, covering MF, HF, Ultrahigh Frequency, and SHF bands, enabling precise measurements of antennas, filters, amplifiers, attenuators, cables, duplexers, couplers, and other microwave parts. The dual-port configuration supports S11 and S21 parameter measurements and sophisticated measurement capabilities, including TDR and DTF through IFFT calculations.

Features:

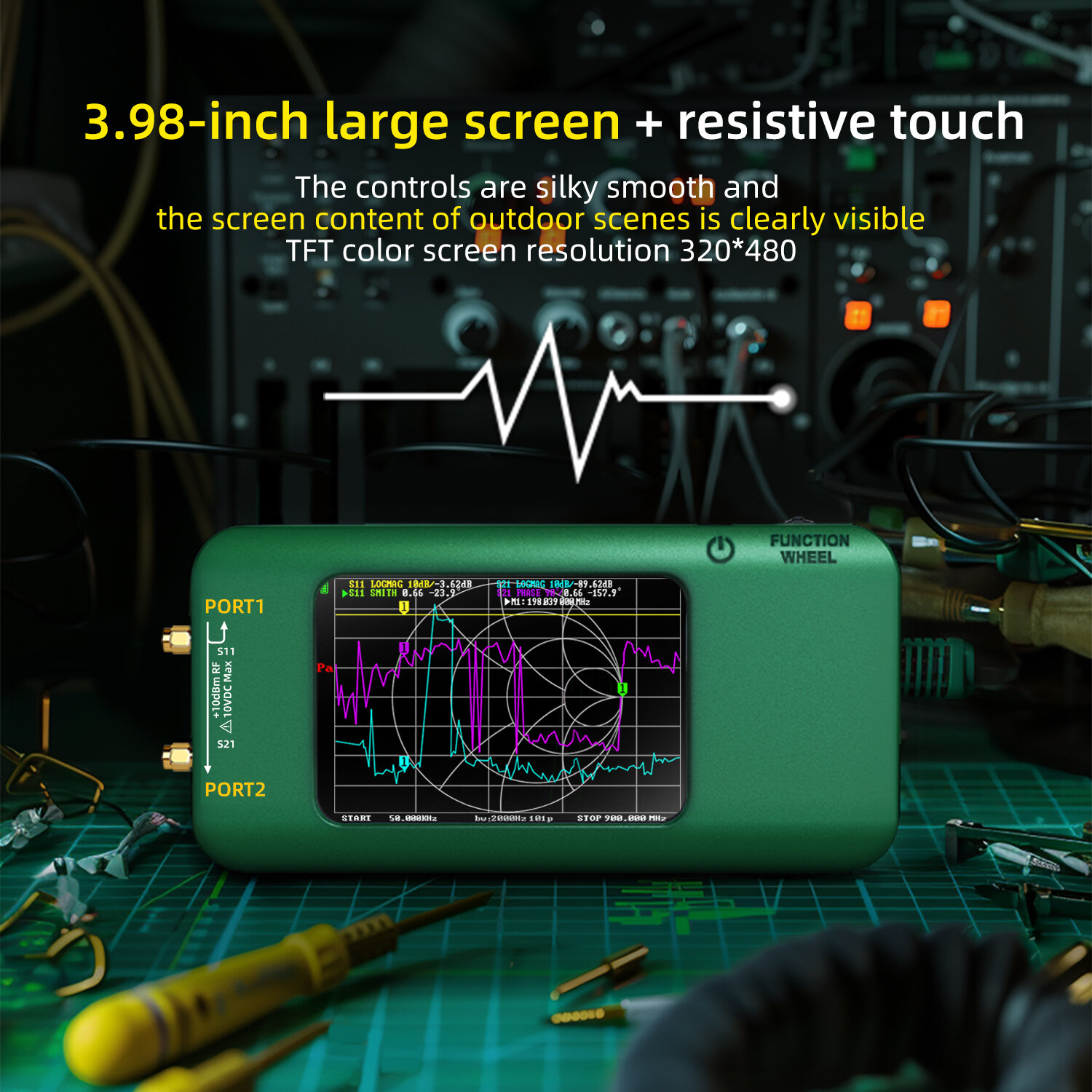

u3010Portable Design & Touchscreen Displayu3011: Equipped with a silicone protective cover for effective shockproofing, a lightweight and compact build, and a 3000mAh lithium-ion battery with quick charging capabilities, ensuring durability and convenience for on-the-go use. Features a 3.98-inch TFT full-view angle touchscreen with 320*480 resolution, providing clear and vibrant visuals for convenient use and smooth, responsive touchcontrols.

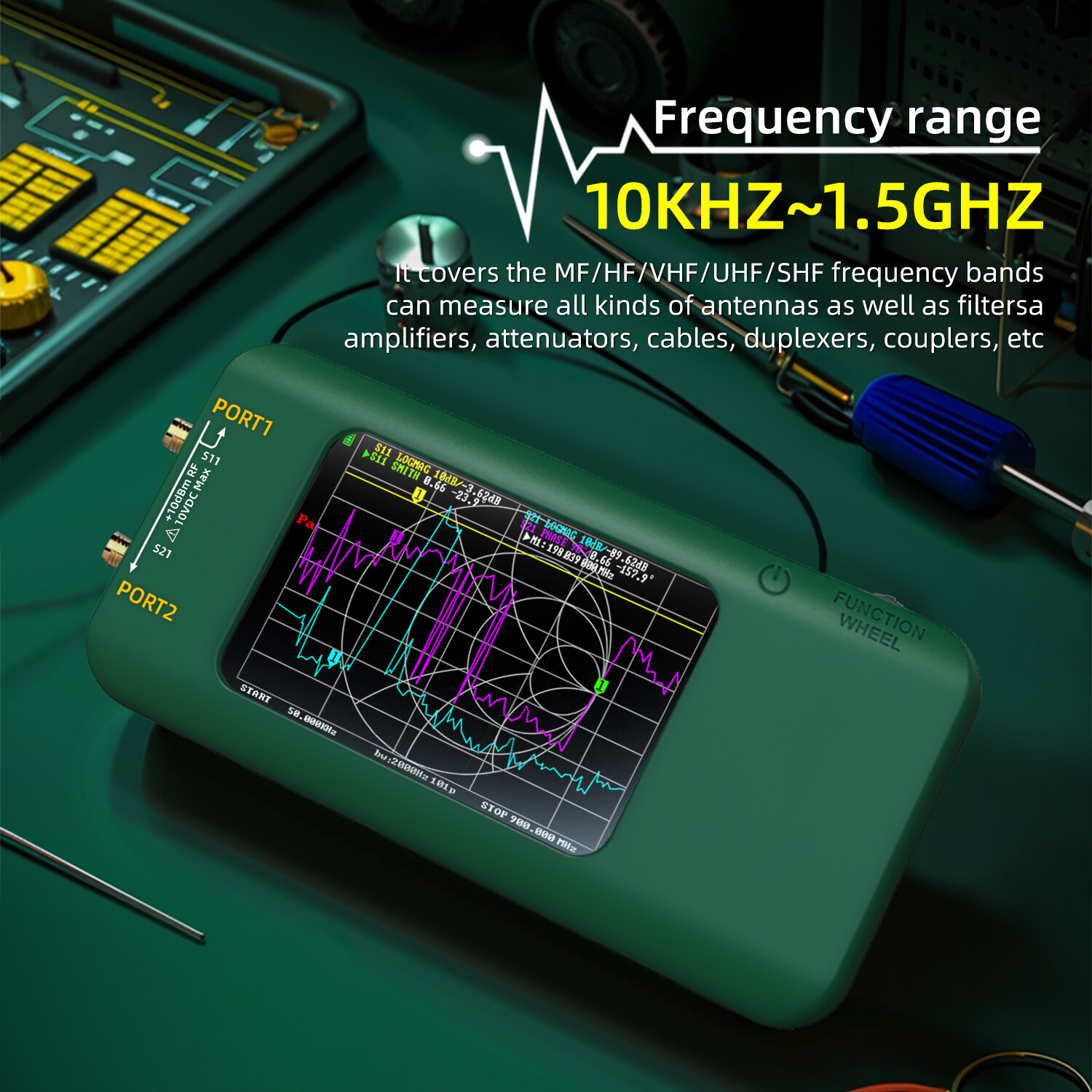

u3010Wide Frequency Measurementu3011: Offers 10 kHz to 1.5 GHz frequency measurement, covering MF, HF, Ultrahigh Frequency, and SHF bands, enabling precise measurements of antennas, filters, amplifiers, attenuators, cables, duplexers, couplers, and other microwave parts. Six variable IF bandwidths for you to choose from, large bandwidths for fast scanning, and small bandwidths to significantly reduce measurement noise.

u3010Dual-Port Design and Sophisticated Measurement Capabilitiesu3011: The dual-port configuration supports S11 and S21 parameter measurements and sophisticated measurement capabilities, including TDR (Time Domain Reflectometry) and DTF (Distance-to-Fault) through IFFT calculations, providing comprehensive insightinto device performance.

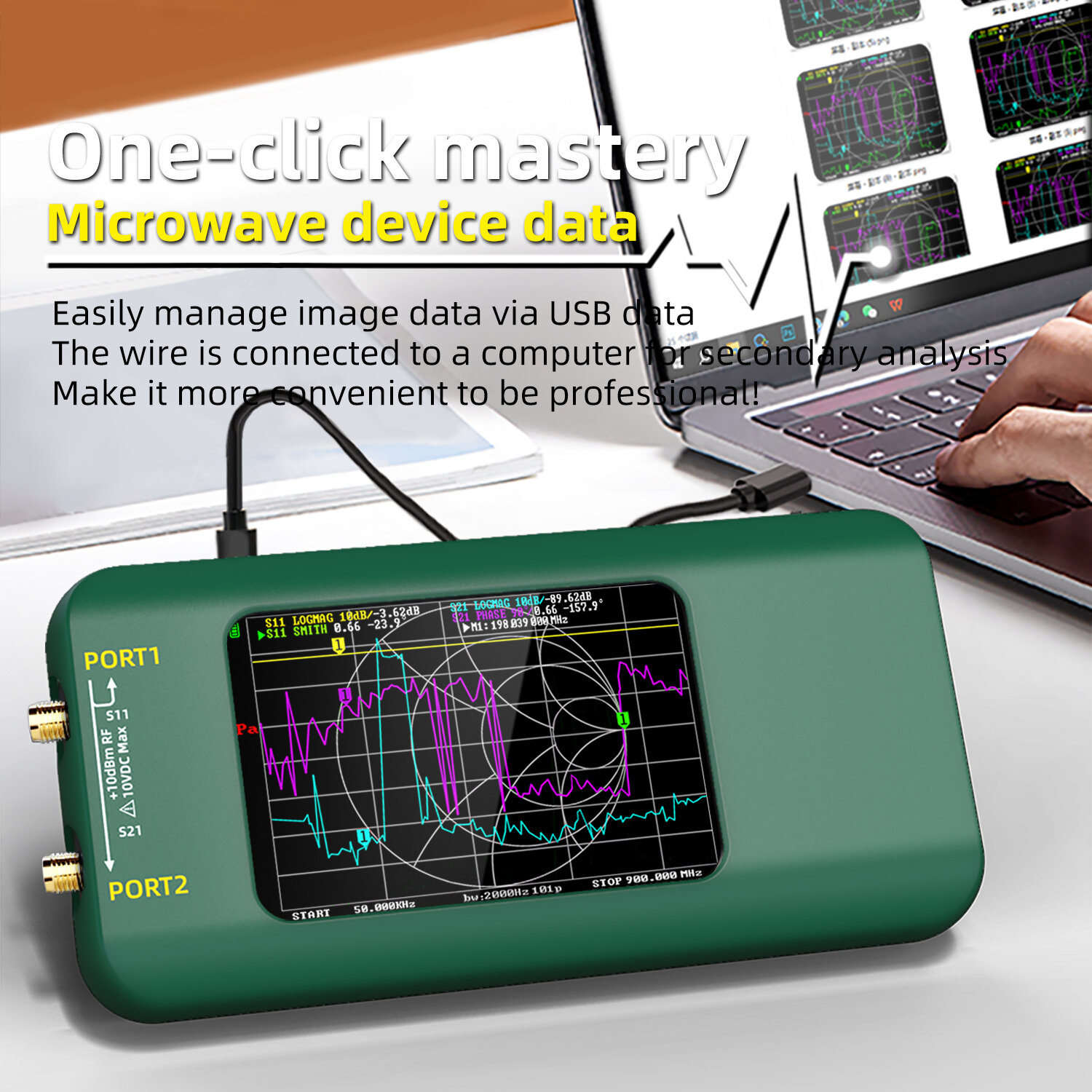

u3010Easy Operation & Secondary Analysisu3011: The full touchscreen operation design with an intuitive interface provides easy navigation and control, allowing for accurate data management and quick connection to a PC via USB for further analysis. Support logarithmic amplitude, phase-frequency diagram group time delay, Smith, polar coordinates, linear amplitude, VSWR real/imaginary part, resistance/reactance, quality factor, etc. Various display format settings.

u3010Memory Functionu3011: Features six quick save/recall slots for calibration states, with a file-based storage function that is only limited by the capacity of the storage card, enabling extensive and convenient data management. Built-in a 4GB memory card to store calibration status, screenshot images, and SNP files. The storage imaging can be named.

u3010Wide Applicationsu3011: Suitable for scanning antenna systems and cables, SWR and impedance matching, dual band and triband duplexers, port isolation by band, insertion loss of filters, evaluation of communication microwave analyses, and much more.

Specifications:

Name: Vector Network Analyzer

Material: ABS + silicone

Battery: built-in 3000mA lithium battery (included)

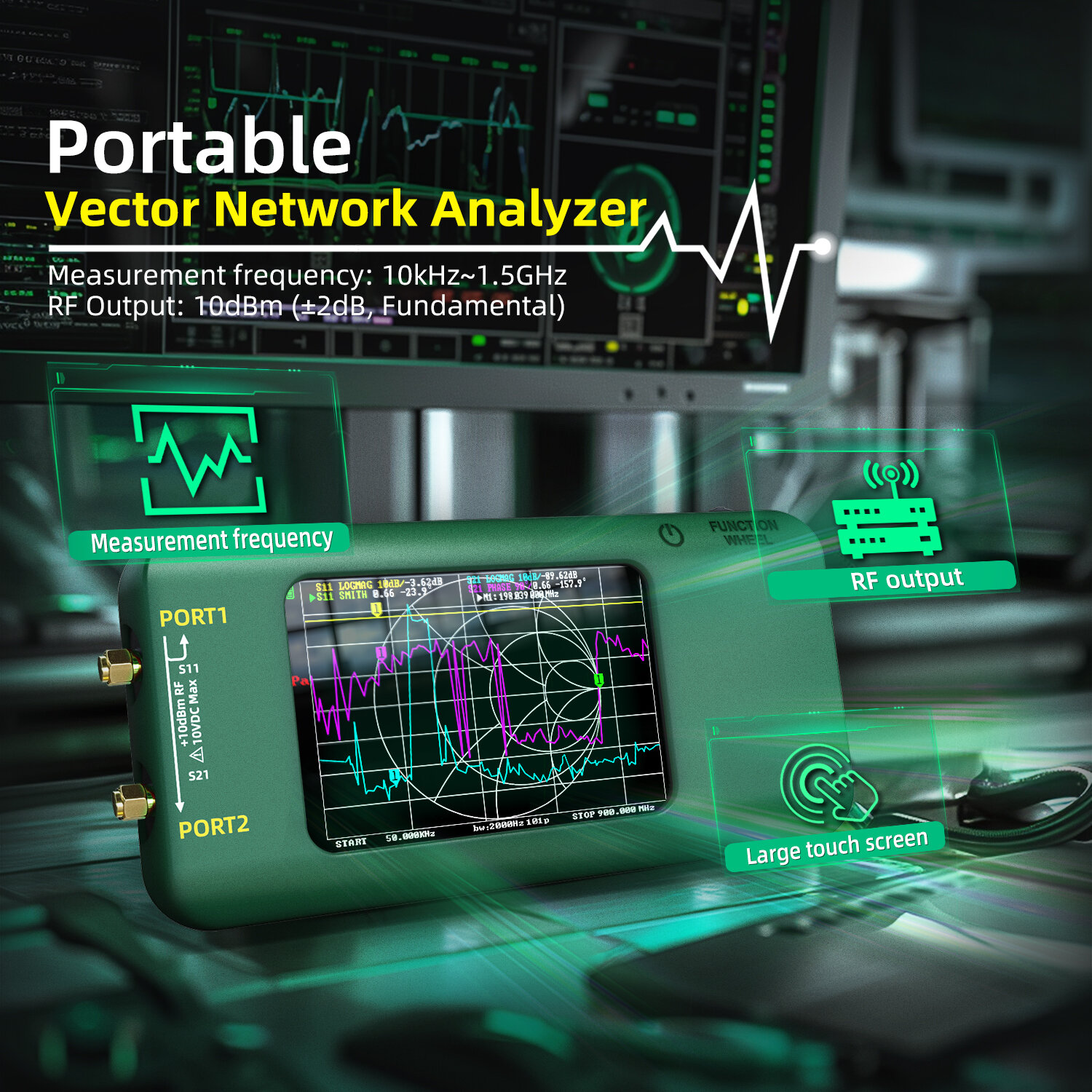

Measurement frequency: 10kHz-1.5Gigahertz

Radio frequency output: 10dBm(±2dB, basewave)

Frequency accuracy: <2ppm

Frequency stability: <0.5ppm

Measurement ranges: 70dB(50kHz-300MHz)/60dB(300-900MHz)/40dB(0.9G-1.5Gigahertz)

Port SWR:<1.1

Display: 3.98-inch TFT color screen (320*480)

Maximum charging current: 2A

Number of calibration points: maximum 401 (optional), connected to the PC without limitations

Number of scanning points: maximum 401 (optional), unlimited when connected to a PC

Scanning point speed: >600p/s (RBW=4000Hz)

Display tracking: 4

Markers: 8

Setting save: 7

Item size: 168 * 81 * 24mm / 6.38 * 3.19 * 0.94in

Package size: 183 * 98 * 48mm / 7.20 * 3.86 * 1.89in

Package weight: 381g / 13.44ounce

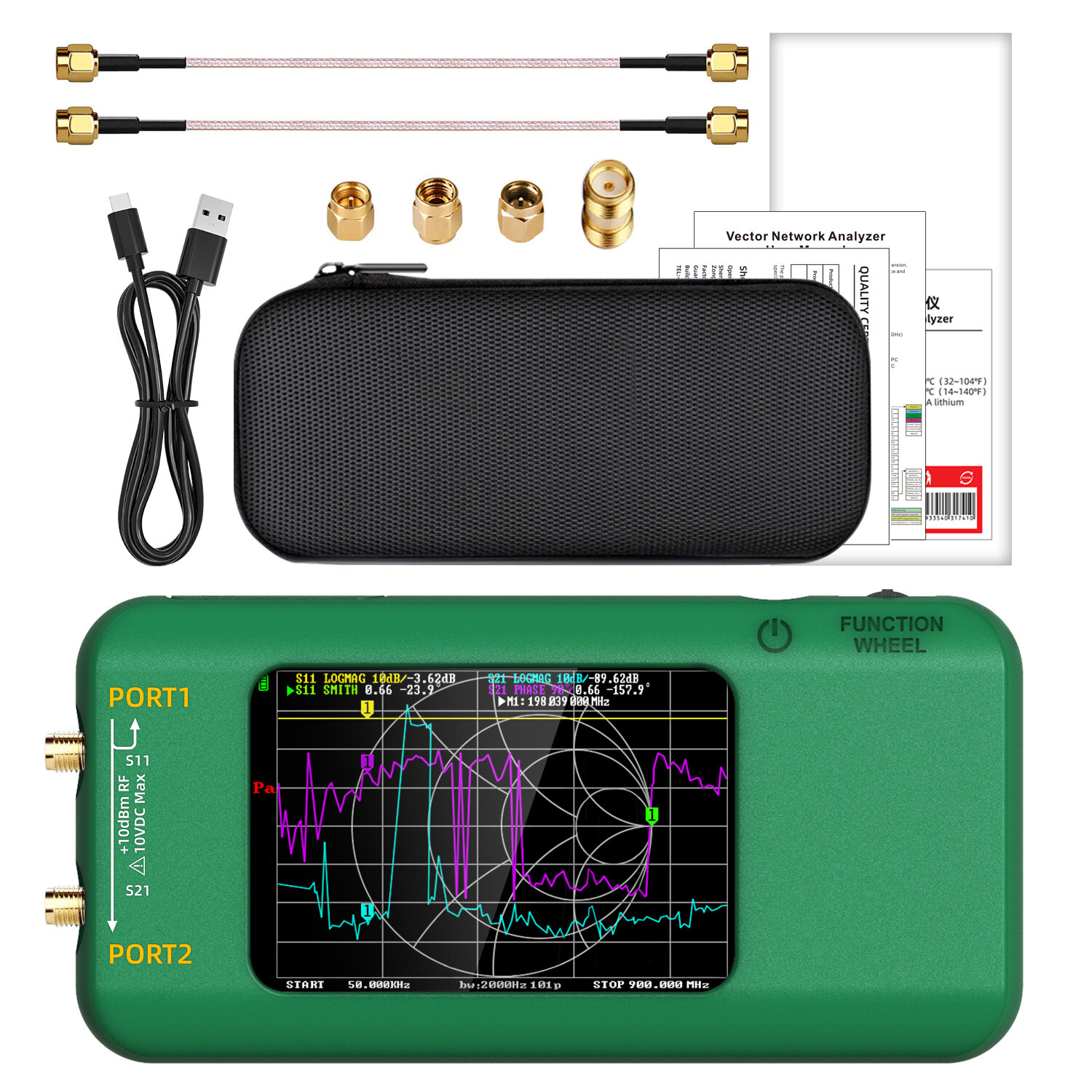

Package Included:

1 x Vector Network Analyzer

3 x Connector

2 x SMA Extension Cable

1 x Type-C Cable

1 x EVA Bag
