Specifications:

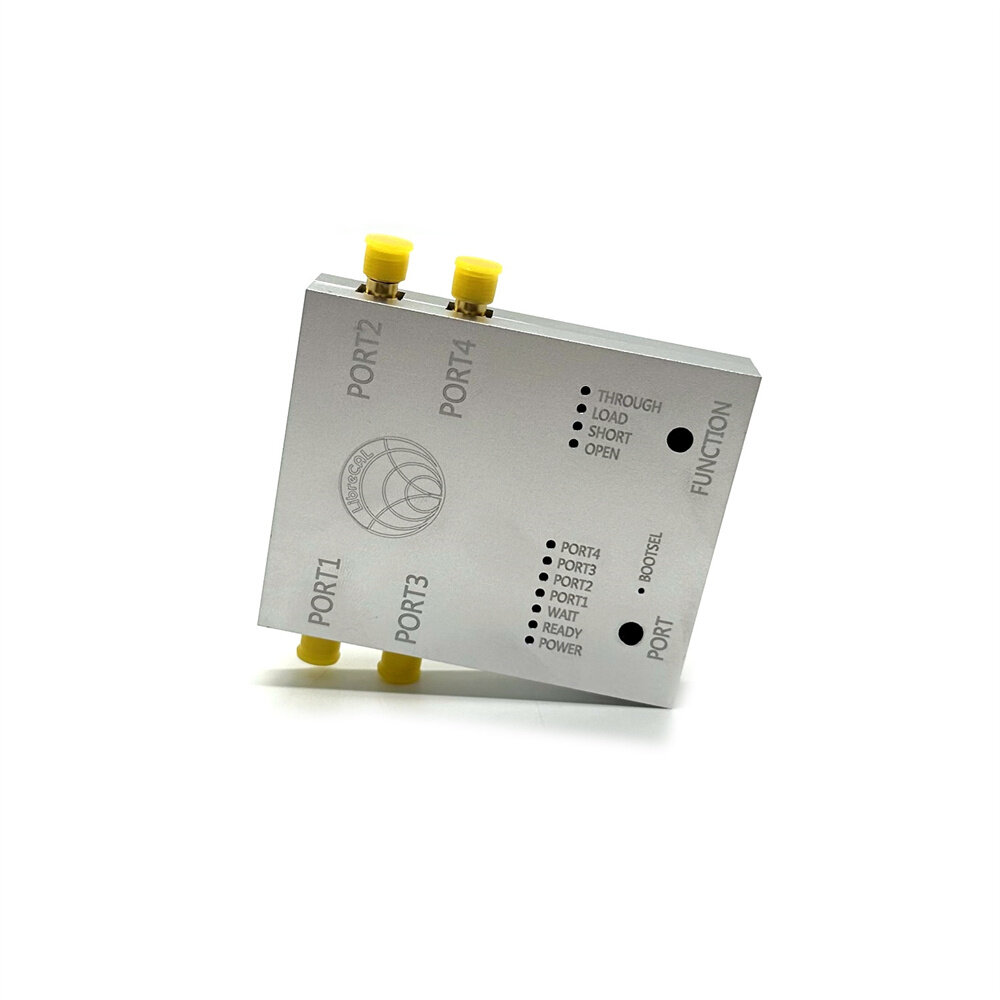

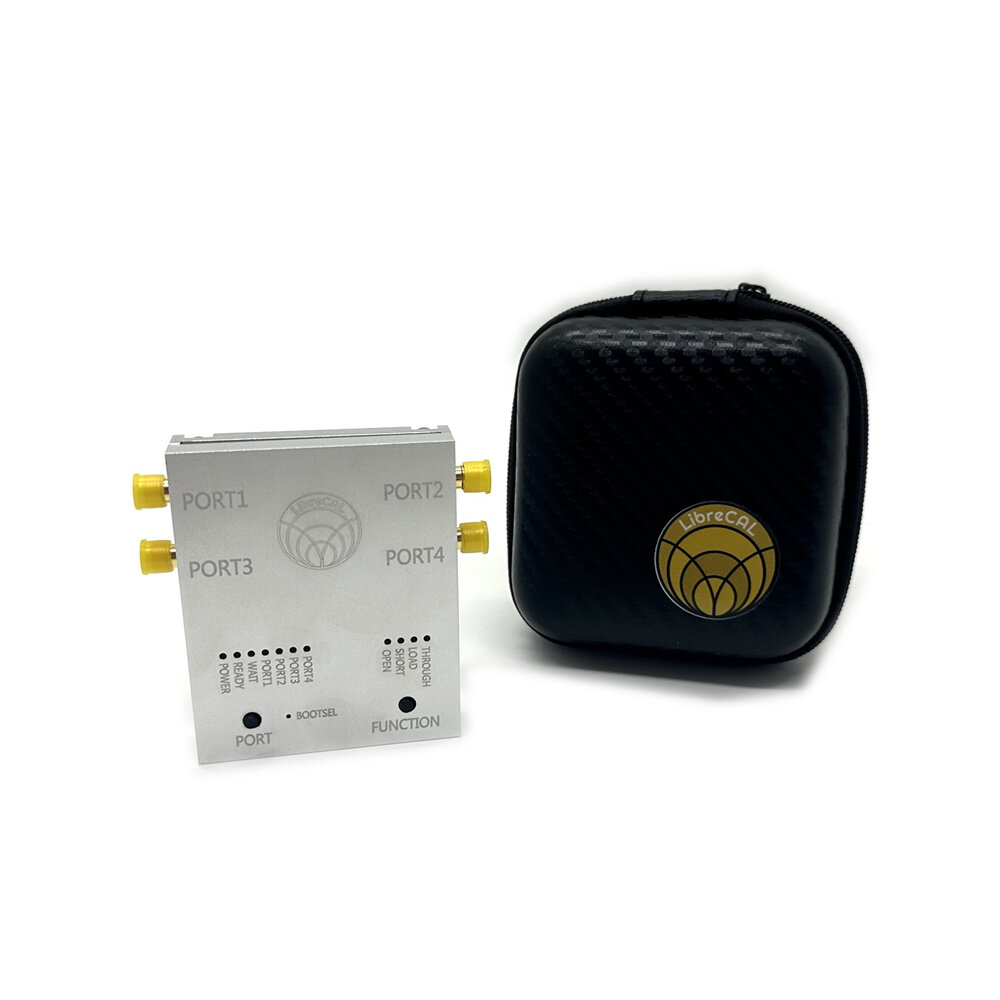

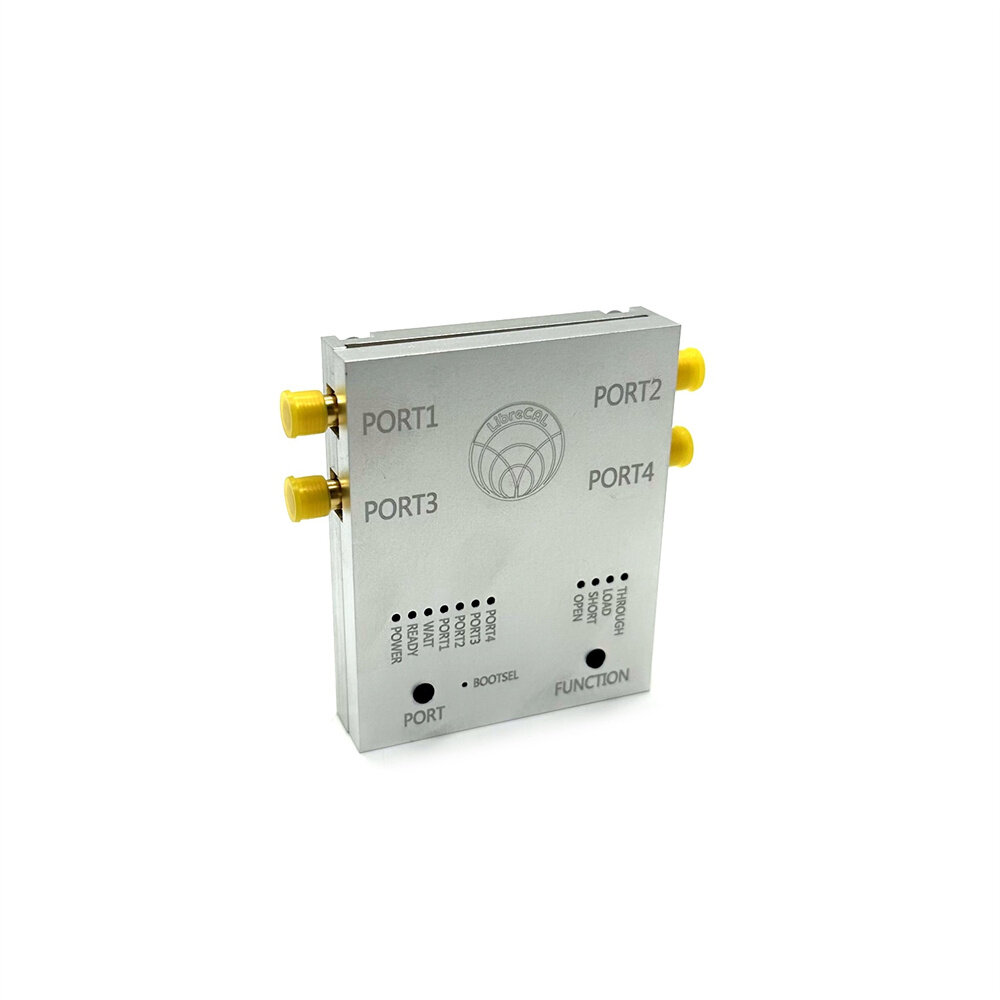

Product Name: LibreCAL Electronic Calibration Kit

Compatibility: Designed for LibreVNA

Calibration Performance: S11 directivity better than 50dB within 3GHz, better than 40dB above 3GHz

Calibration Type: Metric-grade electronic calibration

Usability: Directly callable through LibreVNA-GUI

Open Source: All manufacturing files are published for self-assembly

Limitation: Not suitable for isolation calibration due to internal leakage

Features:

Seamless Integration: Specifically designed for LibreVNA, allowing for quick and easy calibration directly through the LibreVNA-GUI.

Superior Calibration Performance: Offers exceptional S11 directivity, outperforming many mechanical calibration kits without available calibration parameters.

Open-source Design: All necessary files are available for self-assembly, providing flexibility for professional users to create their own kits.

Pre-calibrated Kit: Comes professionally calibrated using metric-grade calibration equipment to ensure peak accuracy and performance.

Convenient Calibration: Eliminates the need for complicated manual operations, simplifying the calibration process significantly compared to mechanical kits.

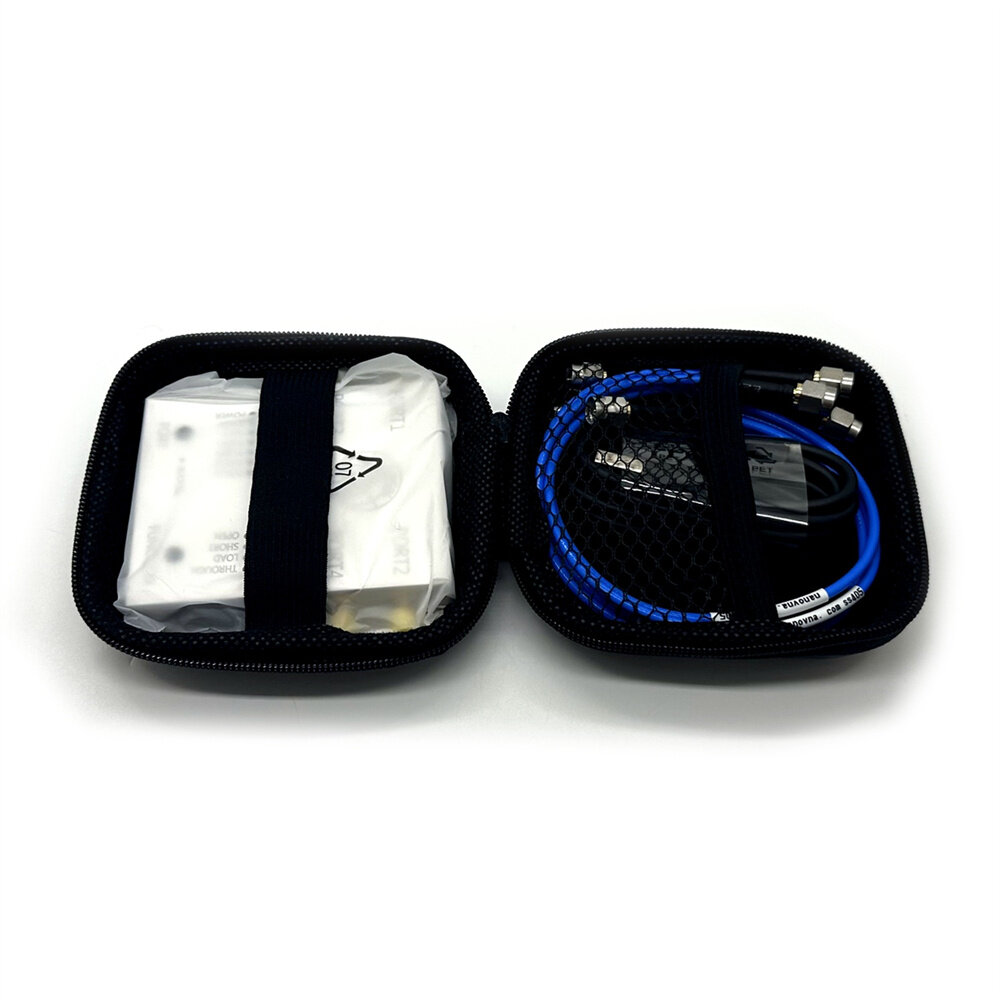

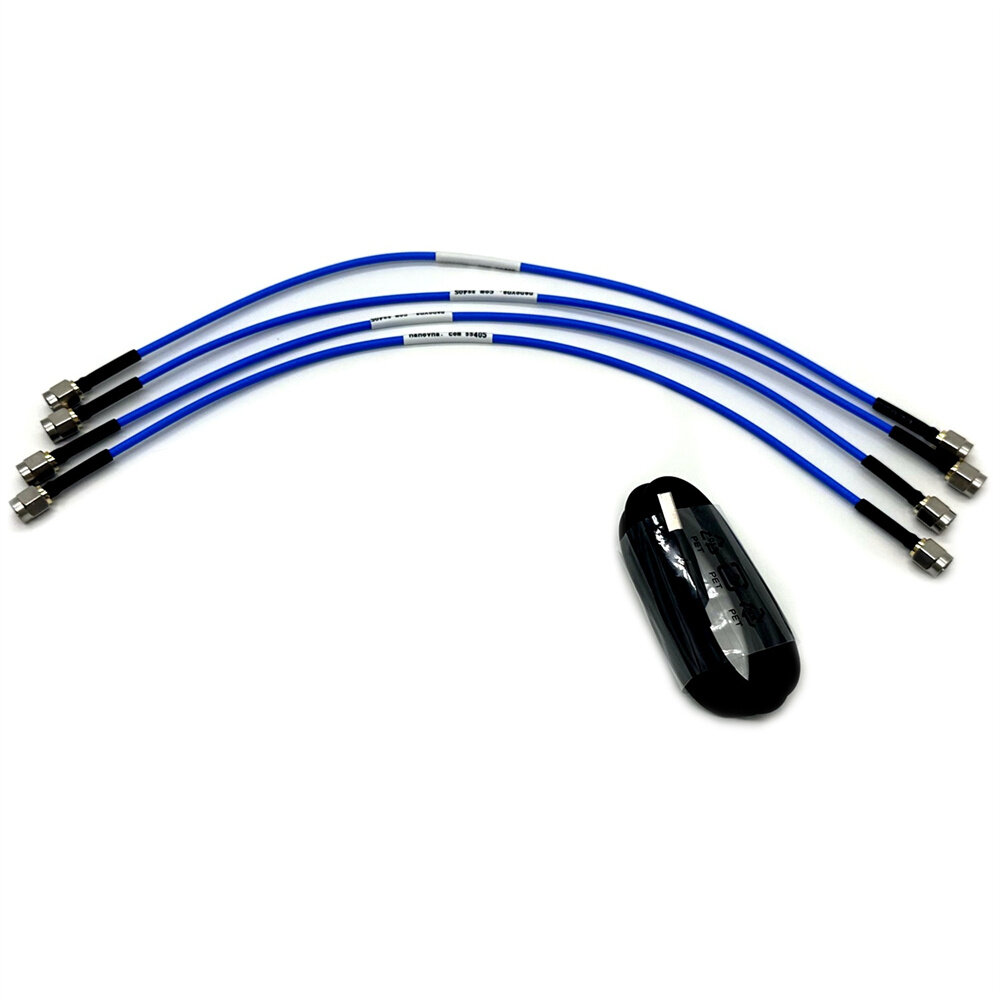

Package Included:

1 x LibreCAL Electronic Calibration Kit

1 x User Manual
